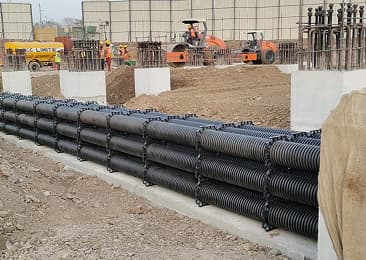

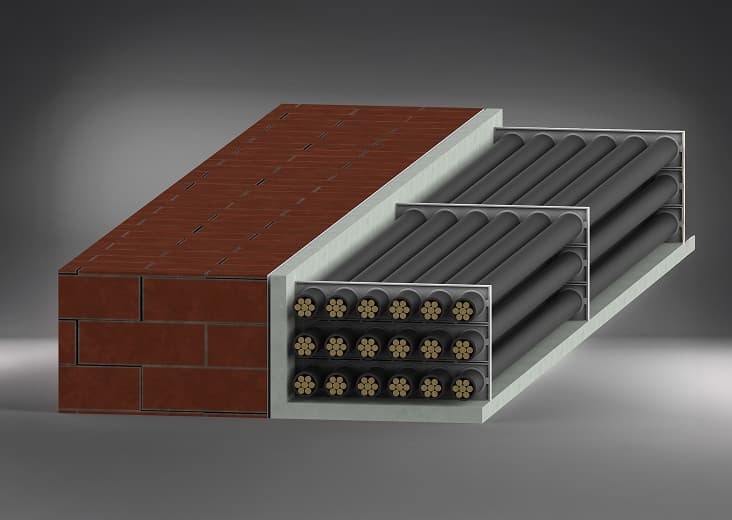

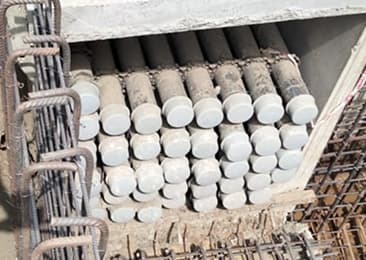

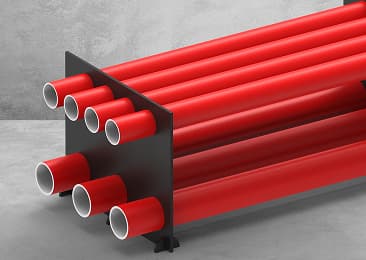

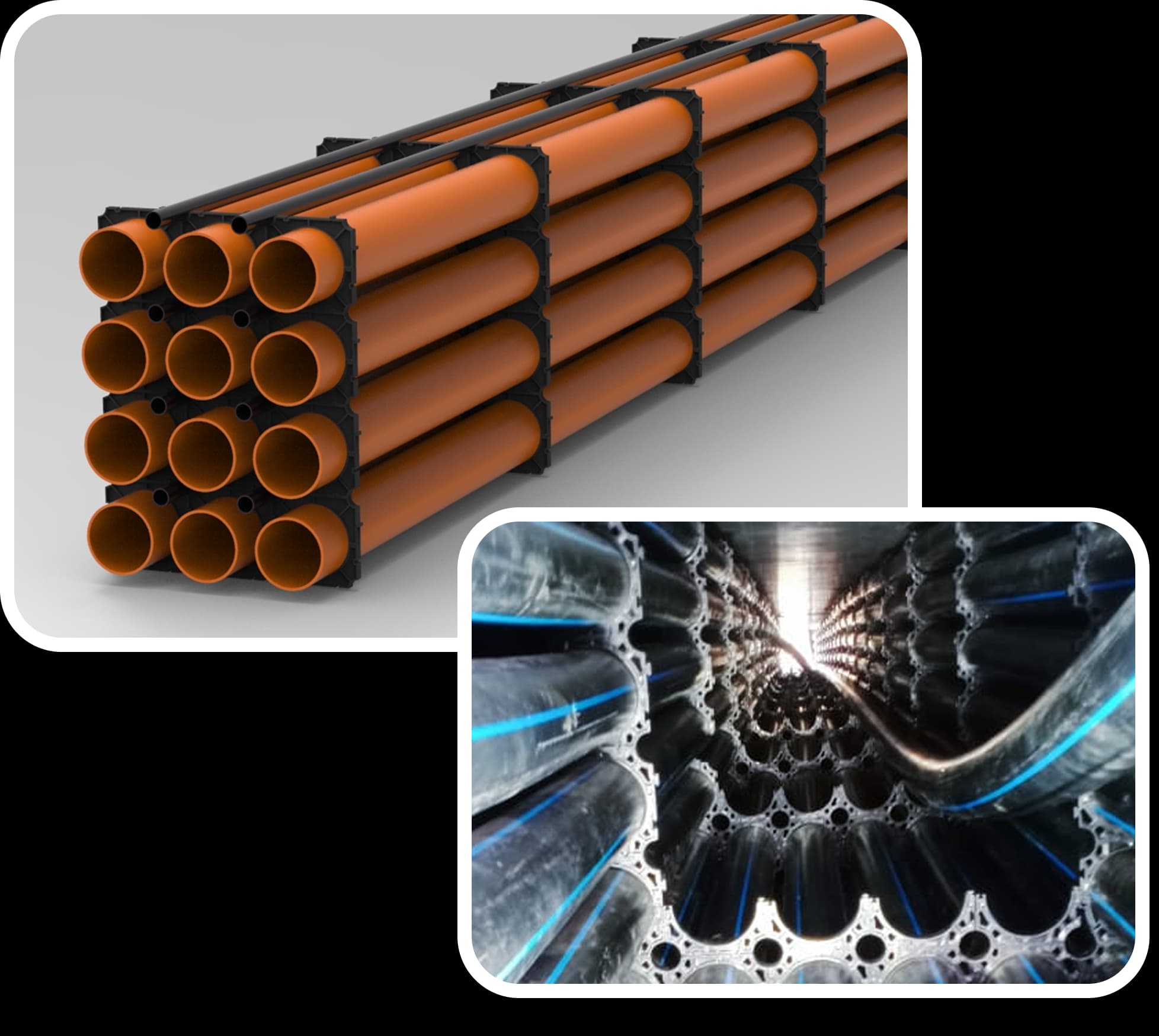

HDPE (High-Density Polyethylene) Pipe Spacers are specially designed to provide alignment, support, and uniform separation of HDPE carrier pipes within casing pipes or in multi-pipe installations.
| Parameter | Details |
|---|---|
| Material | Acrylonitrile Butadiene Styrene or Polyethylene |
| Spacer Type | Standard And Customized |
| Diameter Range (Pipe OD) | 50 mm – 400 mm |
| Spacer Thickness / Heights (Stand-off) | 12 mm, 15 mm, 20 mm, 25 mm, 30 mm, 40 mm, 50 mm (custom sizes on request) |
| Typical Distance Between Pipes | 50 mm – 300 mm (customizable as per design) |
| Recommended Spacing For Pipe Configuration | 1.0 – 3.0 meters (depending on pipe size & load) |
| Temperature Resistance | -20°C to +80°C |
| UV Resistance | Yes |

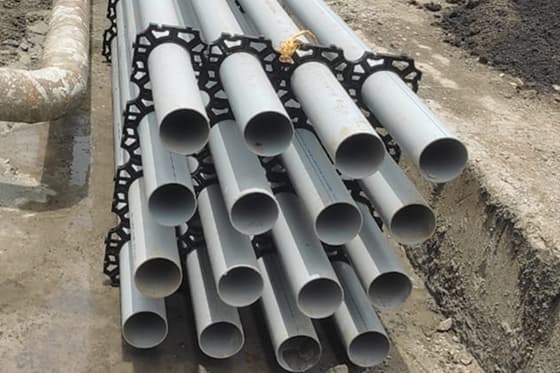

Oil & Gas Pipelines
Pipe Laying For Data Center Projects
Water Supply & Sewerage Pipelines
District Cooling & Heating Systems
Multi-duct Cable & Conduit Installations
Industrial & Utility Piping Systems
HDD & Trenchless Pipeline Installations

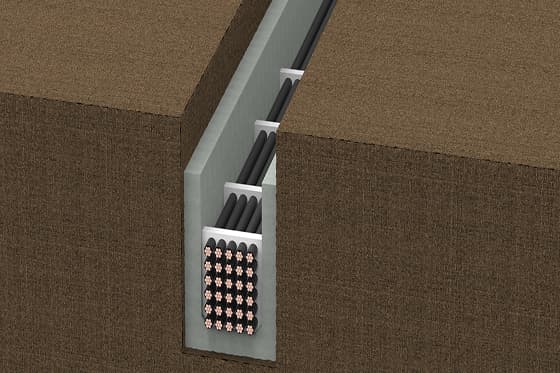

Prevents pipe-to-pipe or pipe-to-metal contact

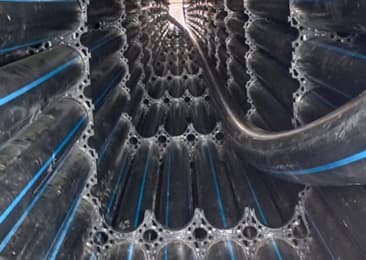

Maintains proper spacing in multi-pipe bundles
Extends service life by eliminating corrosion risk
Ensures uniform annular spacing for grout filling (if required)
Fast and cost-effective installation
Lightweight and easy to handle
Choose the spacer thickness based on required stand-off height
Fix spacers on pipes at recommended intervals (every 1 m - 3 m in trench)

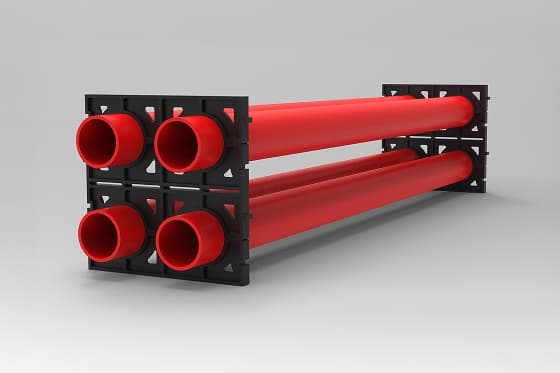

Assemble multiple pipes in the required configuration (2x2, 3x2, 5x4, etc.)
Insert the pipe bundle smoothly inside casing/duct without lubrication

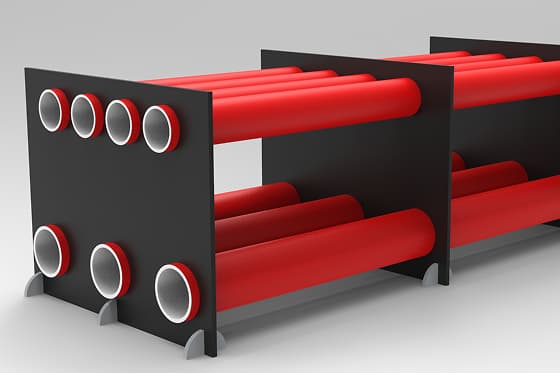

Standard HDPE Spacers
Customized As Per Required Diameters

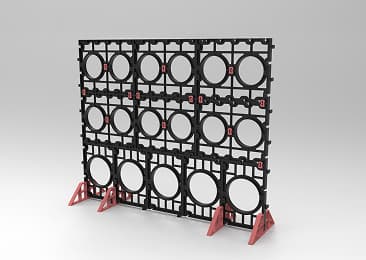

Customized Configurable Spacers (for multi-pipe arrangements with custom spacing)
As a trusted HDPE Pipe Spacer manufacturer, Plastowell Polymers delivers high-performance spacer solutions to clients across India and major international markets. We supply to the Gulf region (Saudi Arabia, UAE, Oman, Qatar, Kuwait), Africa (South Africa, Kenya, Nigeria, Egypt), as well as South-East Asia, the USA, and Europe. With advanced in-house manufacturing, strict quality control, and the ability to support both large-scale and custom pipeline projects, we ensure consistent global standards, timely delivery, and reliable performance in diverse environmental and industrial conditions.
We manufacture HDPE pipe spacers tailored to your exact pipe diameter and stand-off height.
Response within 24 hours
